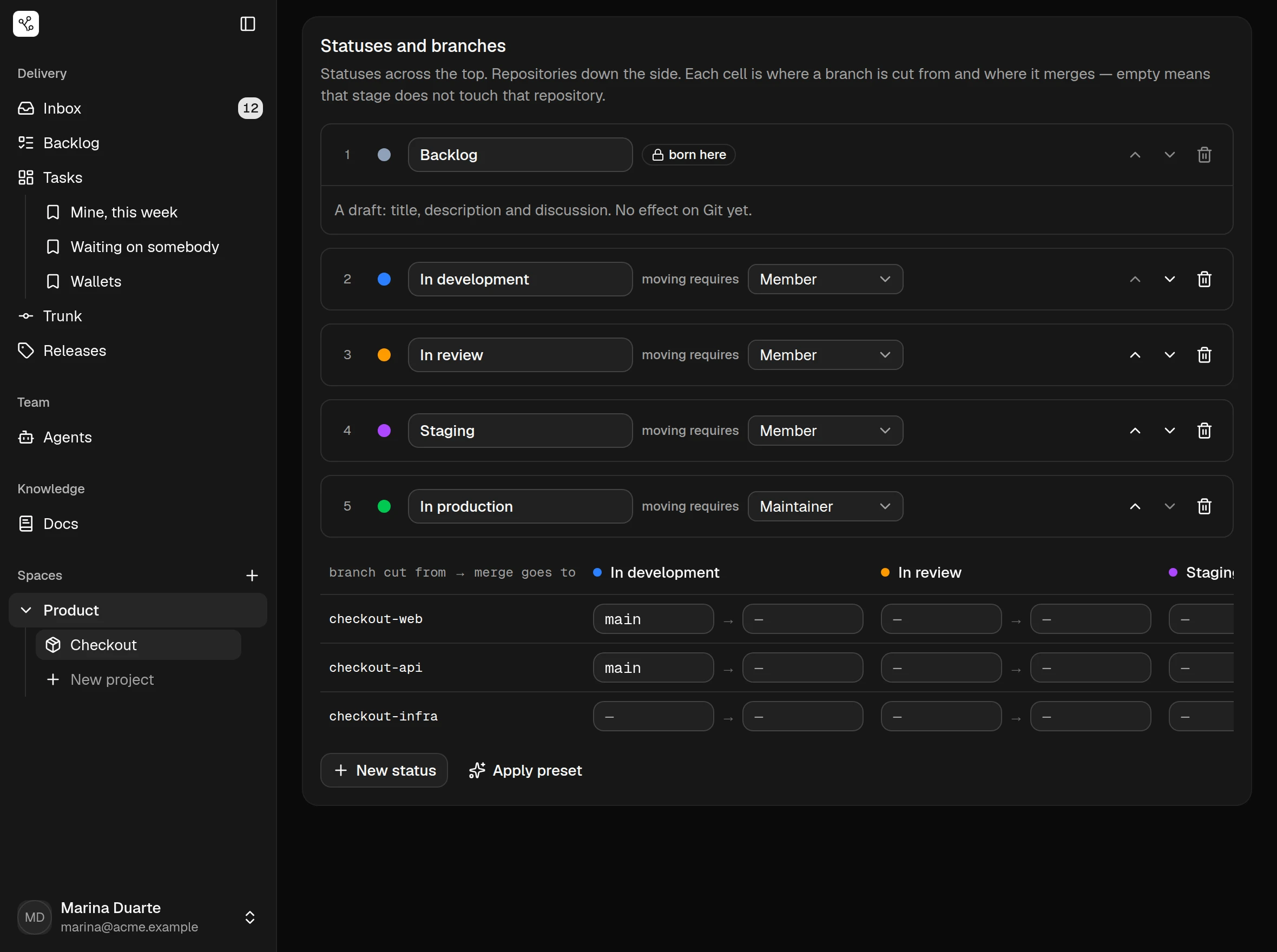

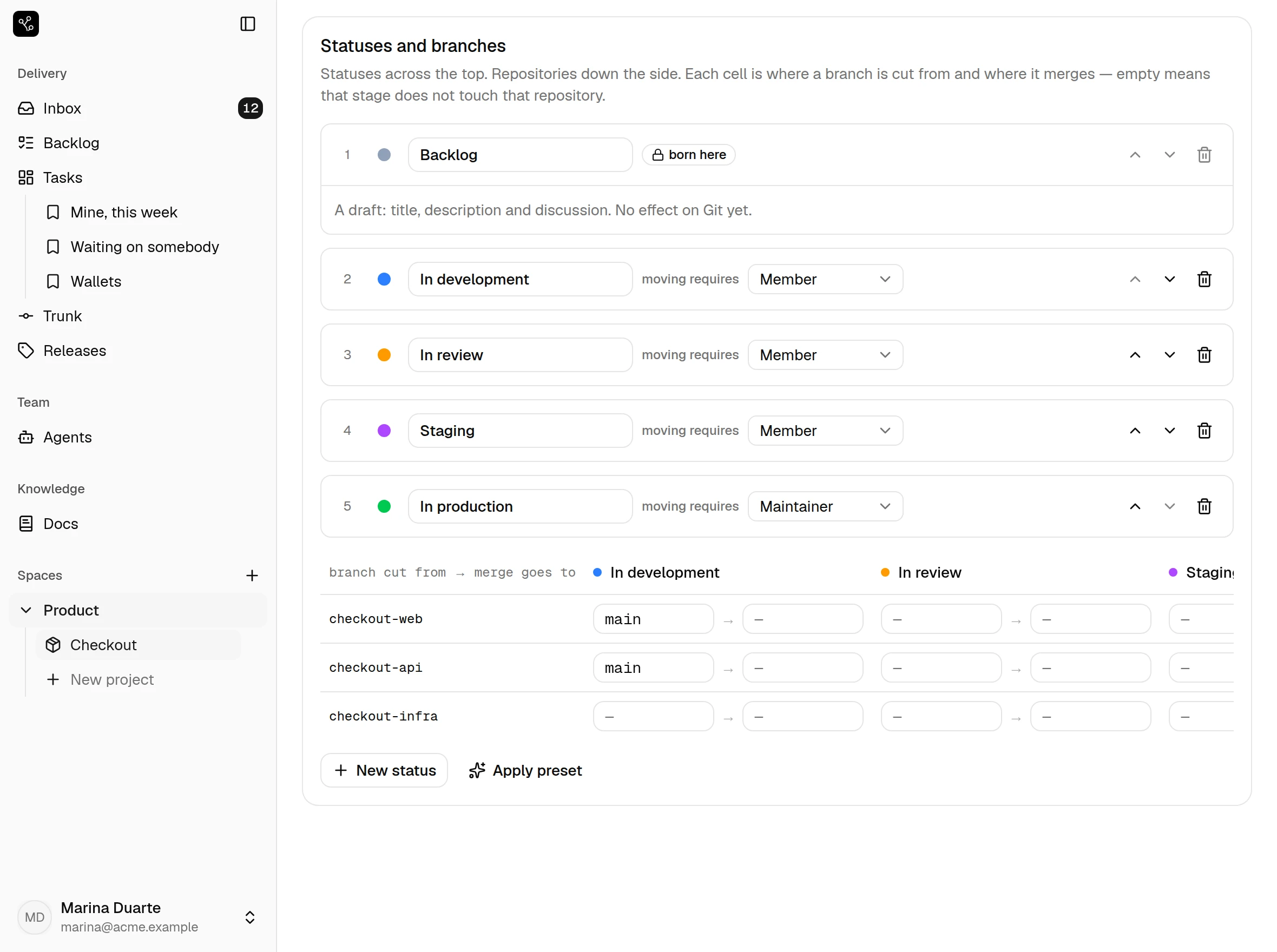

Configured once, per project, and applied the same way every time. This is the
screen that makes moving a card deterministic enough to automate.
The statuses
In order, with the role it takes to move a card into each. In the flow
above, four stages are a member’s and In production is a maintainer’s —
promoting to production is not the same permission as starting work.
The first is the Backlog, marked born here: every card is born there and
it never touches Git. One per flow.
The matrix
The screen says it in one line:
Statuses across the top. Repositories down the side. Each cell is where a
branch is cut from and where it merges — empty means that stage does not
touch that repository.
So reading the row for checkout-web under In development: the branch is cut
from main, and nothing merges. Under In production, the merge goes to
main.
And checkout-infra is empty under In development — that repository joins
later in the flow. A card touching only the web app and the API gets two
branches, not three.
An empty cell is not “not configured yet”. It is a statement: this stage does
nothing to this repository. That is how a flow says a repository only enters
at staging, or only ever receives a merge and is never cut from.
Branch names
A template — feature/{{number}}-{{title}} by default. It matters more than it
looks: the board recognises branches by this convention, so a branch named
anything else never reaches the card it was cut for. Before cutting one by
hand, ask Tylon what it should be called.
Presets
Apply preset replaces the statuses and the matrix with a shape that
already works — trunk-based, or a staging train. Faster than drawing five
columns and safer than guessing which cell should be empty.
A new project starts from the flow of one that already exists and owns it
from then on. Changing this one changes nothing anywhere else.
